Pivot Cycles Switchblade Gen 3 Pro X0 AXS - Carbon Wheels

Pivot Cycles Switchblade Gen 3 Pro X0 AXS - Carbon Wheels

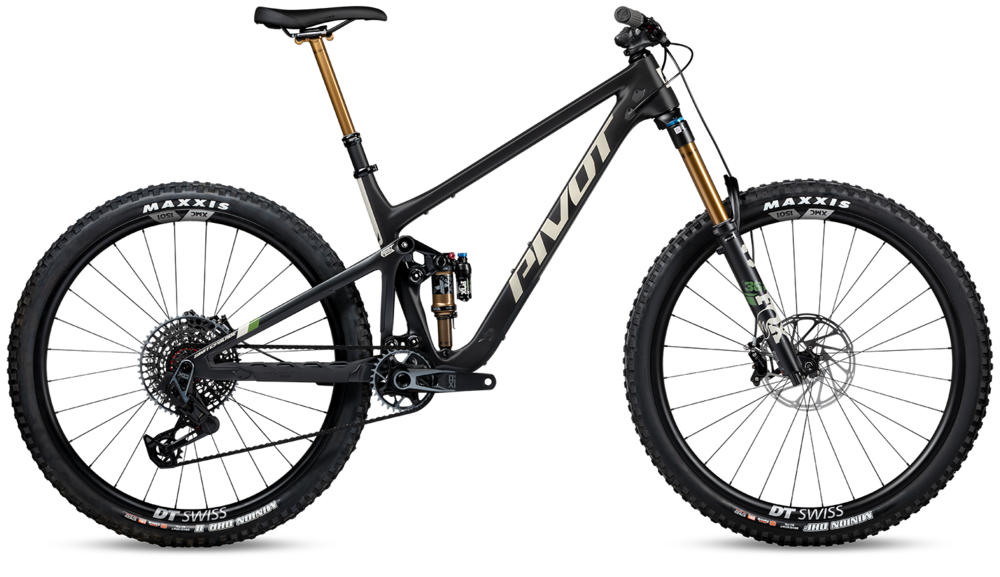

  • Color: Stealth Mojave

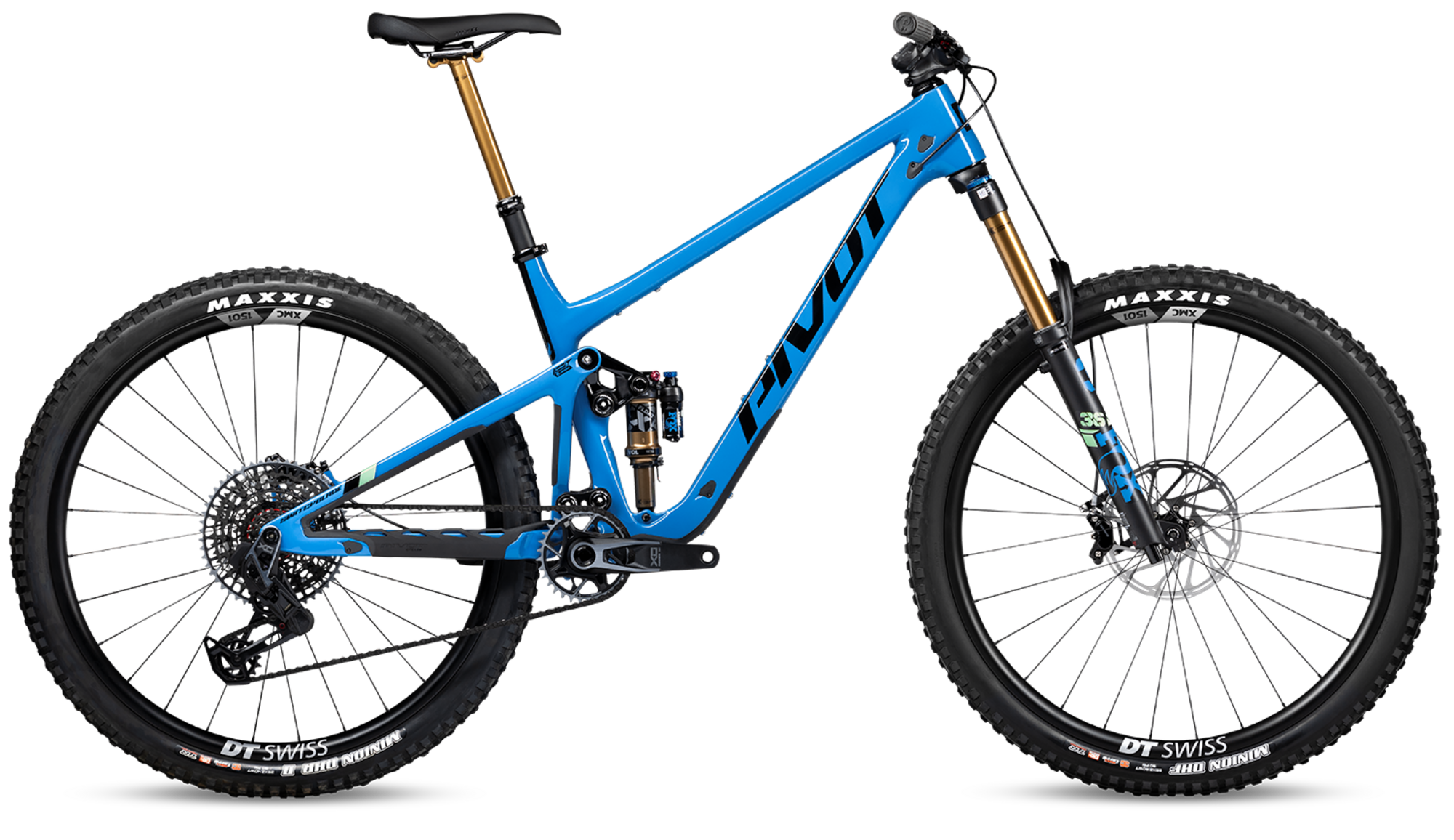

  • Color: Pink Neon
$9,899.00 - $10,099.00
Color:
Size: Select size
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

Do Everything, and Do It Better

The new Switchblade has a slacker head angle, steeper seat angle, increased reach and a longer wheelbase than its predecessor. Size-specific chainstays are tucked in and responsive but grow incrementally longer on larger frames. This translates to added stability at warp speeds while still maintaining the snap and pop that is ingrained in the Switchblade’s DNA.

From Trail to Park

The new Switchblade is light enough to pedal all day, but stout enough to run a Fox 38 without any worries. You can spin this rig up into the jagged high places, and it is burly enough, composed enough, planted enough and smooth enough to smash every line all the way back down, laughing the whole way.

Hail the Evolution!

The latest iteration of this legendary machine features an incredibly refined dw-Link suspension that stitches together the pedaling response and agility of the Trail 429 with the battle-hardened, EWS-proven, big terrain suspension and handling chops of the Firebird.

Pivot trail bikes pedal with near cross-country race efficiency for the longest, steepest climbs, but with the chops to carry you through technical trails that verge on black diamond. These bikes have you covered no matter what the trail dishes out.

PRODUCT DETAILS:

- Ultra-Light Hollow Core Carbon Frame.
- Size Specific Chainstays.
- Equipped with a 44mm offset 160mm-travel Fox 36 Grip2.
- Flip Chip for on-trail geometry customization.
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling.
- Hassle free full internal routing with Pivot cable port system.
- Compatible with both 29, 27.5+” and 27.5” rear/29” front (mullet) wheel sizes without compromise thanks to the Flip chip’s adjustable geometry feature.
- 142mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric air shock.
- Large Water Bottle Clearance on all sizes.
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame.

Sizes:
Frame SizeX-SmallSmallMediumLargeX-Large
Bottom Bracket SettingHigh / Low High / LowHigh / LowHigh / LowHigh / Low
Seat Tube Length (C-T) (cm)34.3 36.839.443.247
Top Tube Length (cm)56.8 / 56.9 60.5 / 60.663.3 / 63.464.9 / 6566.2 / 66.3
Head Tube Length (cm)8.5 1011.211.713
Head Tube Angle65.7° / 65.2° 65.7° / 65.2°65.7° / 65.2°65.7° / 65.2°65.7° / 65.2°
Seat Tube Angle76.5° / 76° 76.5° / 76°76.5° / 76°76.5° / 76°76.5° / 76.5°
Chainstay Length (cm)42.9 / 43.1 42.9 / 43.142.9 / 43.143.1 / 43.243.5 / 43.6
Bottom Bracket Height (cm)35 / 34.4 35 / 34.435 / 34.435 / 34.435 / 34.4
Bottom Bracket Drop (cm)2.3 / 2.9 2.3 / 2.92.3 / 2.92.3 / 2.92.3 / 2.9
Standover (cm)65.6 / 65.1 67.2 / 66.769.4 / 6970.6 / 70.170.7 / 70.2
Wheelbase (cm)115.6 / 115.7 119.2 / 119/3122.2 / 122.3124 / 124.2127 / 127.1
Reach (cm)41.5 / 41 44.5 / 4447 / 46.548.5 / 4850.5 / 50
Stack (cm)61.1 / 61.4 62.4 / 62.763.5 / 63.863.9 / 64.365.1 / 65.5
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small150 - 163 4'11" - 5'4"
Small163 - 175 5'4" - 5'9"
Medium173 - 180 5'8" - 5'11"
Large178 - 188 5'10" - 6'2"
X-Large188 + 6'2" +

Specs

Fork Fox Factory 36 29", 44mm offset, GRIP2 - 160mm
Stem Phoenix Team Enduro/Trail - 35mm(XS), 45mm(SM-XL)
Chain Sram X0 Eagle 12-Speed Flat Top
Frame Switchblade
Tires Maxxis Minion DHF 29" x 2.5" /Maxxis Minion DHRII 29" x 2.4"
Brakes Sram Code RSC 4-piston
Rotors Sram Centerline CenterLock - 200mm
Sram Centerline CenterLock - 180mm
Saddle Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Volt Pro (Medium Width) (MD-XL)
Wheels DT Swiss XMC1501 w/ DT Swiss 240 hub EXP 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
Headset Pivot Precision Sealed Cartridge
Crankset Sram X0 Eagle DUB 32t - 170mm
Seatpost Fox Factory Transfer 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG-XL)
Shifters Sram AXS Pod Controller
Handlebars Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), 800mm (XL)
Rear Shock Fox Factory Float X
Tape/Grips Phoenix Factory Lock-On
Rear Derailleur Sram X0 Eagle Transmission 12-Speed
Cassette/Freewheel Sram X0 1295 Eagle Transmission 10-52t

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Stealth Mojave / Small 196338116480 00SWBV629CXOB--STMSMDRPCN PIV434412466
Stealth Mojave / Medium 196338116466 00SWBV629CXOB--STMMDDRPCN PIV41968213E
Pink Neon / Large 196338179249 00SWBV629CXOB--PNKLGDRPCN PIV39290981N
