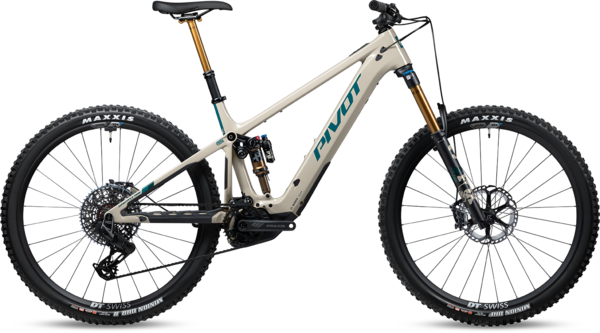

Pivot Cycles Shuttle AM Pro X0 Eagle Transmission

Pivot Cycles Shuttle AM Pro X0 Eagle Transmission
$10,999.00
$10,999.00 - $11,799.00
Color: Mojave Willow Green
Size: Select size
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

THE SWEET SPOT
The Shuttle AM doesn't shy away from touting itself as an all-mountain masterpiece that dominates the realm of e-mountain performance. This awe-inspiring e-bike strikes the perfect chord, delivering an unmatched blend of lightweight agility and long-travel prowess that hits the all-mountain sweet spot.

UNMATCHED PERFORMANCE, ENDLESS POSSIBILITIES
Crafted to be the ultimate all-mountain machine, the Shuttle AM comes equipped with everything you need to conquer any trail on the mountain. Powered by the latest Bosch Performance drive systems, all Shuttle AM models deliver class-leading performance. With a long-lasting battery, the Shuttle AM provides ample range, allowing you to explore more trails and go the extra mile, or ten.

- Ultralight Hollow Core Carbon Frame.
- Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds.
- Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds.
- Bosch 250wh PowerMore Range Extender Compatible.
- Integrated Power and Mode Display.
- Wheel Mounted Speed Sensor.
- Wireless Bosch Remote.
- 160mm Fox 36 Grip 2 Factory Fork.
- Flip-Chip Upper Link Mount.
- Fully Mulletable and 27.5+" Wheel Compatible.
- Pivot Dock Tool System Compatible.
- Water Bottle Clearance on All Sizes.
- Fox Factory Float X Shock with 148mm of Progressive Suspension Travel.
- Injection Molded Rubberized Frame Protection.
- Full Internal Routing with Pivot Cable Port System.

Sizes:
SIZESmallMediumLargeX-Large
Rider Height (In) 5'2" - 5'7" 5'7" - 5'11" 5'10" - 6'2" 6'1" +

Geometry and sizing

Sizes:
HIGH BB Setting
SIZE Small Medium Large X-Large
A-Seat Tube Length 37.8 cm 39.9 cm 43.2 cm 47.0 cm
B-Top Tube Length 59.8 cm 63.0 cm 64.7 cm 67.0 cm
C-Head Tube Length 11.0 cm 12.0 cm 13.0 cm 14.0 cm
D-Head Tube Angle 64.5° 64.5° 64.5° 64.5°
E-Seat Tube Angle (Eff.) 76.8° 76.8° 76.8° 76.8°
F-Chainstay Length 44.4 cm 44.4 cm 44.4 cm 44.4 cm
G-Bottom Bracket Height 35.0 cm 35.0 cm 35.0 cm 35.0 cm
H-Bottom Bracket Drop 2.4 cm 2.4 cm 2.4 cm 2.4 cm
I-Standover 72.0 cm 72.0 cm 72.0 cm 72.0 cm
J-Wheelbase 121.6 cm 125.0 cm 126.9 cm 129.4 cm
Stack 62.9 cm 63.8 cm 64.7 cm 65.6 cm
Reach 43.5 cm 46.5 cm 48.0 cm 50.0 cm
Sizes:
LOW BB Setting
SIZE Small Medium Large X-Large
A-Seat Tube Length 37.8 cm 39.9 cm 43.2 cm 47.0 cm
B-Top Tube Length 59.9 cm 63.1 cm 64.9 cm 67.1 cm
C-Head Tube Length 11.0 cm 12.0 cm 13.0 cm 14.0 cm
D-Head Tube Angle 64.1° 64.1° 64.1° 64.1°
E-Seat Tube Angle (Eff.) 76.4° 76.4° 76.4° 76.4°
F-Chainstay Length 44.4 cm 44.4 cm 44.4 cm 44.4 cm
G-Bottom Bracket Height 34.5 cm 34.5 cm 34.5 cm 34.5 cm
H-Bottom Bracket Drop 2.9 cm 2.9 cm 2.9 cm 2.9 cm
I-Standover 71.5 cm 71.5 cm 71.5 cm 71.5 cm
J-Wheelbase 121.7 cm 125.1 cm 127.0 cm 129.5 cm
Stack 63.2 cm 64.2 cm 65.1 cm 66.0 cm
Reach 43.1 cm 46.1 cm 47.6 cm 49.6 cm

Videos

Part Numbers

Option UPC MPN Store SKU
Mojave Willow Green / Small 196338163552 00SHTV629AXOB--MWGSMDRPCNSA1 PIV47661622S
Mojave Willow Green / Medium 196338163477 00SHTV629AXOB--MWGMDDRPCNSA1 PIV48824431S
Mojave Willow Green / Large 196338163392 00SHTV629AXOB--MWGLGDRPCNSA1 PIV4785674S
Mojave Willow Green / X-Large 196338163637 00SHTV629AXOB--MWGXLDRPCNSA1 PIV52230128S
