Ibis Ripley V4S XT

Ibis Ripley V4S XT
  • Color: Bad Apple
  • Color: Drywall
$5,249.25
$6,999.00
Color:
Drywall
Wheel Size:
29-inch
Please select options

Details

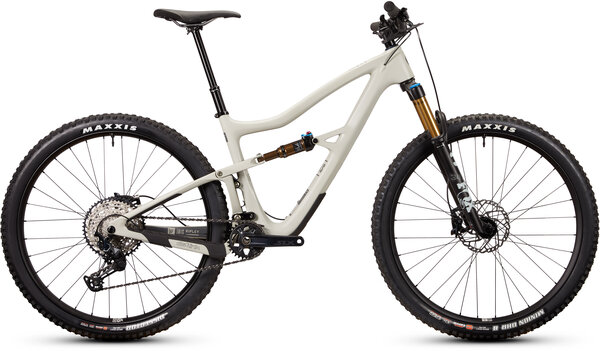

The Ripley is our snappy, flickable, playful, fast, lightweight, and versatile 29" trail bike. Its combination of modern geometry, a stiff lightweight carbon chassis, and 120mm of ultra-efficient dw-link travel, means it's equally happy popping off bonus lines as it is crushing all-day epics.

LONGER, SLACKER, STEEPER
With its well bal­anced mod­ern geom­e­try, the Rip­ley is ready for any adven­ture. The long front end, slack head angle, and short rear end gives you the con­fi­dence to try new lines, while the steep seat tube angle and short­er off­set fork makes it easy to maneu­ver tech­ni­cal climbs and flowy singletrack.

REVISED SWINGARM
The Rip­ley V4S fea­tures a new UDH dérailleur for max­i­mum future com­pat­i­bil­i­ty and moves to a 55mm chain line. The wider chain line allows for a stiffer chainstay.

DW LINK
Since 2005, we've part­nered with sus­pen­sion guru Dave Wea­gle on the dw-link sus­pen­sion plat­form. It pro­vides an unpar­al­leled com­bi­na­tion of climb­ing effi­cien­cy and down­hill per­for­mance, that has been proven repeat­ed­ly at the high­est lev­els of racing.

LONG DROPPER POST
We use names like small, medi­um, and large to describe our siz­ing because it's easy to under­stand, but our ultra-low stan­dovers and clear­ance for long drop­pers give you the ability to size based on reach.

LIGHTWEIGHT PREMIUM CARBON, FOR EVERYONE
Whether you order an XX1 or SLX kit, you'll get the same pre­mi­um car­bon fiber frame. All our bikes are built from the high­est grade mate­ri­als and opti­mized for the best strength, weight, stiff­ness, and ride per­for­mance. The Rip­ley weighs 5 lbs without shock.

FORK OFFSET
Some­times, short­er is bet­ter. Instead of the typ­i­cal 51mm off­set, the new Rip­ley uses a 44mm off­set. This gives you the sta­bil­i­ty of a slack­er head angle while retain­ing the BMX like feel of, well, a Ripley.

2.6" TIRE CLEARANCE
We pio­neered the wide rim rev­o­lu­tion a few years ago and inspired a new crop of wider 2.4"?- ?2.6" tires. When paired together, this com­bo can be run at ultra-low pres­sures that pro­duce elbow-drag­ging cor­ner­ing trac­tion without sac­ri­fic­ing speed.

REMOVABLE ISCG05 MOUNT
There if you want it, remov­able if you don't.

INTERNAL CABLE TUNNELS
Inter­nal cable rout­ing used to be a pain in the ass but our inter­nal tubes make rout­ing easy. Just pop the hous­ing through and it comes out the other end, no need for swear words or a pickset.

PROTECT YOUR INVESTMENT
A thick rub­ber down­tube pro­tec­tor deflects debris, while our chain­stay pro­tec­tor fea­tures thick raised sec­tions to help damp­en chain slap noise. And our sim­ple-yet-ele­gant link­age pro­tec­tors stop mud and rocks thrown by the tire, keep­ing your beau­ti­ful bike beautiful.

LIFETIME WARRANTY
If it's our fault, we'll fix it. Sim­ple as that.

Geometry

Sizes:
FRAME SIZESMALLMEDIUMLARGEX-LARGE
Seat Tube Length (mm) A 368 381 418 482
Top Tube Length (mm) B 574 603 630 658
Head Tube Length (4mm stack of lower cup not included) C 90 105 115 125
Chainstay Length (mm) D 432 432 432 432
Seat Tube Angle E 76° 76° 76° 76°
Head Tube Angle F 66.5° 66.5° 66.5° 66.5°
Wheelbase (mm) G 1147 1178 1207 1236
BB Height (with 2.5 Maxxis Minions) 335 335 335 335
Stack (mm) 599 613 622 631
Reach (mm) 425 450 475 500
Standover (mm) 708 712 742 755
Trail (mm) 114 114 114 114
Saddle height for seat tube angle (mm) 600 700 750 807
Sizes:
Sizing Guide (Rider Height)
S 152–163CM
M 160–173CM
L 170–185CM
XL 183–196CM

Specs

Frame Carbon Fiber Monocoque
Fork Fox Factory Series, Float 34, 130mm, 44mm offset, 29”, 110x15mm
Rear Shock Fox Float Factory DPS with EVOL, 190x45 S/M: Light Tune, L/XL: Standard Tune
Wheels Blackbird Send Alloy (Send I front, Send II rear) / 29" / Ibis Hubs
Tires Maxxis DHR2 29" x 2.4" Exo TR (front), Maxxis Dissector 29" x 2.4" Exo TR (rear)
Brakes Shimano XT M8120, 4 piston
Crankset Shimano XT M8120 24mm spindle, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
Bottom Bracket Shimano XT MT800
Shifters Shimano XT M8100 12 speed
Cassette/Freewheel Shimano XT 10-51
Rear Derailleur Shimano XT M8100 Shadow Plus 12 speed
Rotors Shimano SM-RT86 180
Headset Cane Creek 40 ZS44/ZS56
Handlebars Ibis 800mm Hi Fi Bar
Chain Shimano XT M8100 12 speed
Tape/Grips Lizard Skin Charger Evo
Stem Industry Nine A318 S/M: 40mm, L/XL: 50mm
Seatpost Bike Yoke Revive Dropper S: 125mm, M: 160mm, L: 185mm, XL/XXL: 213mm. Note there is a 250lb rider weight limit on this post.
Saddle WTB Silverado

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Drywall / Medium / 29-inch 840345300843 RLC2GYSXTAL35 IBI28549700T
Drywall / X-Large / 29-inch 840345301208 RLC4GYSXTAL35 IBI28539504T
