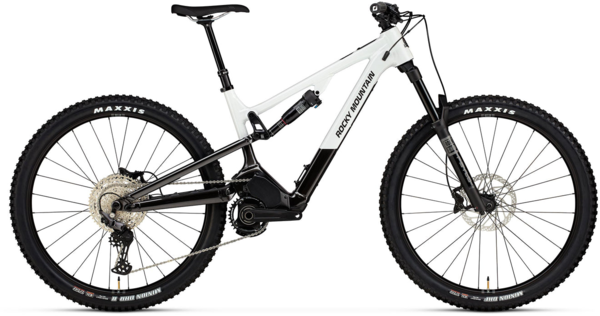

Rocky Mountain Instinct Powerplay SL Alloy 30
$5,499.00
Details
The Instinct Powerplay SL Carbon packs a punch in a lightweight package. Powered by the all-new Dyname S4 Lite drive system, this bike rides like a trail bike with the power to explore further than ever before. With adjustable geometry, refined suspension kinematics, and MX compatibility, the Carbon Instinct Powerplay SL delivers unreal levels of playfulness and agility, lap after lap… after lap.
Wheel size:
- Size X-Small: 27.5-inch
- Sizes Small – X-Large: 29-inch
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 566 | 598 | 626 | 658 |
| Head Tube Angle (deg) | 64 | 64 | 64 | 64 |
| Head Tube Length (mm) | 105 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 77.5 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 | 440 | 450 | 450 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 614 | 618 | 632 | 641 |
| Standover Height (mm) | 790 | 813 | 813 | 813 |
| Wheelbase (mm) | 1203 | 1230 | 1272 | 1306 |
| X-Small | 147.5 - 157.5 cm / 4'7" - 52" |
|---|---|
| Small | 152.5 - 167 cm / 5'0" - 5'6" |
| Medium | 162.5 - 177.5 cm / 5'4" - 5'10" |
| Large | 172.5 - 188 cm / 5'8" - 6'2" |
| X-Large | 183 - 198 cm / 6'0" - 6'6" |
Specs
| Frame | FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Psylo Gold RC 150mm | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Rear Shock | SM-XL: RockShox Deluxe Select+ | 230x57.5mm | XS: RockShox Deluxe Select+ | 210x52.5mm | Sealed Bearing Eyelet | 25x8mm F Hardware | Size-Specific tune in FAQ |
| Rims | WTB ST i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl |
| Hubs | Front Hub: Shimano TC500 | 15mm Boost/Rear Hub: Shimano TC500 Boost 148mm |
| Spokes | DT Swiss Champion 2.0 |
| Tires | Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready | Tubeless Set Up | Sealant Incl |
| Bottom Bracket | Rocky Mountain Sealed - Shimano Compatible |
| Crankset | Rocky Mountain Microdrive 2PC | Race Face 34T SHI 12 Ring | 24mm Spindle | Crank Length: 165mm |
| Shifters | Shimano Deore 12spd |
| Rear Derailleur | Shimano Deore 12spd |
| Cassette/Freewheel | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Brakes | Shimano MT4120 4 Piston | Resin Pads |
| Handlebars | Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
| Headset | FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Seatpost | X Fusion Manic Composite 30.9mm |XS - SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm |
| Saddle | WTB Volt Race 142 | Cromoly rails |
| Motor | Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 550w Max Power | 65Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 480 Wh Removable Integrated Li-Ion |
| Charger | Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector |
| Controller/Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Pour Some Sugar on Me/Ziggy Stardust / Small / 29-inch | 770416001686 | B0415SM2 | INS37678774Y |
| Pour Some Sugar on Me/Ziggy Stardust / Medium / 29-inch | 770416001662 | B0415MD2 | INS3756481Y |
| Pour Some Sugar on Me/Ziggy Stardust / Large / 29-inch | 770416001648 | B0415LG2 | INS37233277Y |
