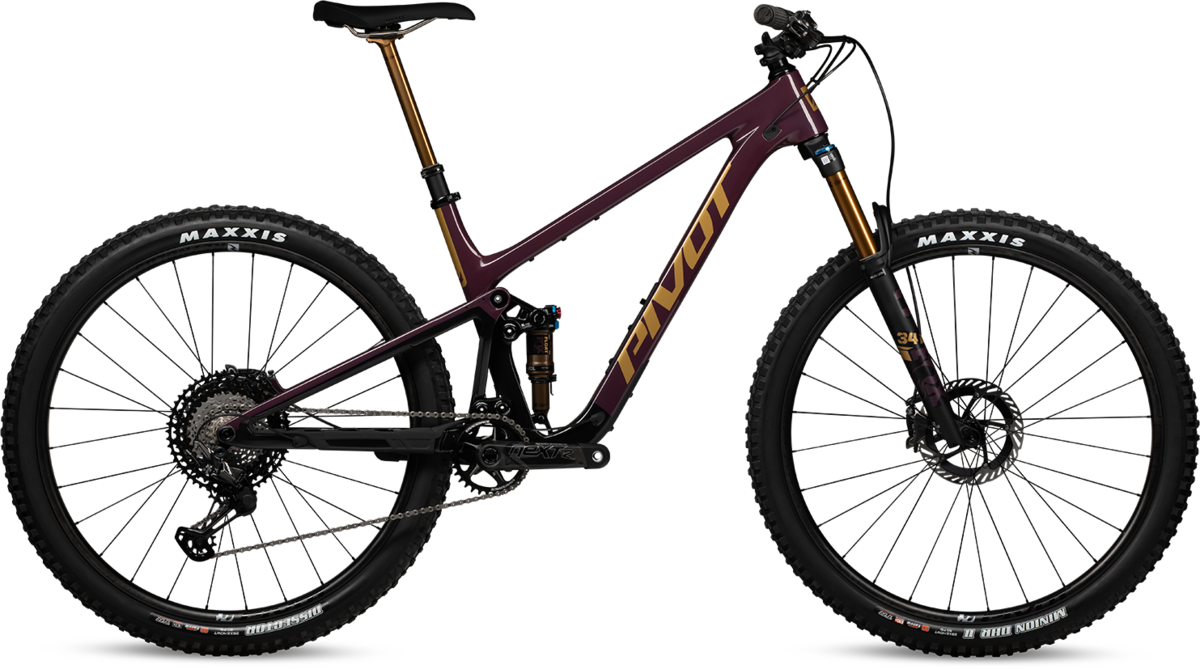

Pivot Cycles Trailcat SL Team XTR - Carbon Wheels
Details
Super light, razor-sharp, and unapologetically fast, the all-new Trailcat SL earns its title as the ultimate trail companion by amplifying every aspect of your ride. Its lightweight frame and finely tuned dw-link suspension platform make climbing effortless, delivering smooth, efficient power. Agile enough to navigate tight switchbacks and composed enough to handle rough, fast descents, the Trailcat SL is as versatile as it is fun. From spirited after-work loops to all-day adventures, it combines efficiency, precision and stability in a way that inspires confidence on any terrain.
The Trailcat SL is designed to keep your focus where it belongs: the ride. Pivot’s innovative Toolshed™ downtube storage system features a precision-engineered door that stays silent, even on the roughest trails. Inside, the durable Toolshed™ bags keep your essentials secure, eliminating the need for bulky packs while maintaining a sleek, streamlined profile. For added versatility, the Pivot Tool Dock system offers additional on-bike storage options, ensuring you’re always prepared without sacrificing style or performance.
Product Details:
- Ultra-Light Hollow Core Carbon Frame
- Toolshed™ In-Frame Storage
- New Dual Cable Port Design
- Large Water Bottle Clearance on all sizes
- Fits riders between 4’10” and 6’5”+ with X-Small to X-Large size offerings
- Flip Chip for on-trail geometry customization
- MX Wheel Compatible
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Hassle free full internal routing with Pivot cable port system
- UDH Derailleur Hanger
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Geometry Position | Low / High | Low / High | Low / High | Low / High | Low / High |
| Seat Tube Length (C-T) (cm) | 34.3 | 36.8 | 39.4 | 43.2 | 47 |
| Top Tube Length (cm) | 56.9 / 56.7 | 59.6 / 59.5 | 62.9 / 62.7 | 64.6 / 64.5 | 66 / 65.8 |
| Head Tube Length (cm) | 8.5 | 9.5 | 10.7 | 11.2 | 12.5 |
| Head Tube Angle | 65.8° / 66.3° | 65.8° / 66.3° | 65.8° / 66.3° | 65.8° / 66.3° | 65.8° / 66.3° |
| Seat Tube Angle | 76° / 76.4° | 76° / 76.4° | 76° / 76.4° | 76° / 76.4° | 76° / 76.4° |
| Chainstay Length (cm) | 43.1 / 42.9 | 43.1 / 42.9 | 43.1 / 42.9 | 43.2 / 43 | 43.4 / 43.2 |
| Bottom Bracket Height (cm) | 33.8 / 34.4 | 33.8 / 34.4 | 33.8 / 34.5 | 33.8 / 34.5 | 33.8 / 34.5 |
| Bottom Bracket Drop (cm) | 3.6 / 3 | 3.6 / 3 | 3.6 / 3 | 3.6 / 3 | 3.6 / 3 |
| Standover (cm) | 65.3 / 65.7 | 67.4 / 67.8 | 67.8 / 68.2 | 69.2 / 69.6 | 70.7 / 71.2 |
| Wheelbase (cm) | 114.3 / 114.2 | 117.2 / 117.1 | 120.7 / 120.6 | 122.6 / 122.5 | 125.3 / 125.2 |
| Stack (cm) | 60.4 / 60.1 | 61.4 / 61 | 62.5 / 62.1 | 62.9 / 62.5 | 64.1 / 63.7 |
| Reach (cm) | 41 / 41.5 | 43.5 / 44 | 46.5 / 47 | 48 / 48.5 | 50 / 50.5 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| X-Small | 1,50 – 1,63 m | 4'11" – 5'4" |
| Small | 1,63 – 1,75 m | 5'4" – 5'9" |
| Medium | 1,73 – 1,80 m | 5'8" – 5'11" |
| Large | 1,78 – 1,88 m | 5'10" – 6'2" |
| X-Large | 1,88 m + | 6'1" + |
Specs
| Frame | Trailcat SL |
|---|---|
| Fork | Fox Factory 34 29", GRIPX2 - 140mm |
| Rear Shock | Fox Factory Float |
| Wheels | Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x157 R |
| Tires |
Front: Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA Rear: Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA |
| Crankset | Race Face Next R 32t |
| Shifters | Shimano XTR M9100 ISPEC EV 12-Speed |
| Rear Derailleur | Shimano XTR M9100 SGS 12-Speed |
| Cassette/Freewheel | Shimano XTR M9100 10-51t |
| Chain | Shimano CN-M9100 12-Speed |
| Brakes | Shimano XTR M9120 4-piston |
| Rotors | Shimano XTR CenterLock - 180mm |
| Handlebars | Phoenix Team Low Rise Carbon - 780mm (XS-LG), 800mm (XL) |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 35mm(XS), 45mm(SM), 55mm(MD-XL) |
| Headset | Pivot Precision Sealed Cartridge |
| Seatpost | Fox Transfer Factory Series 125mm (XS), 150mm (SM), 155mm -180mm (MD), 210mm (LG-XL) |
| Saddle | Phoenix WTB Volt Team (Medium Width) |
| Pedals | Sold Separately |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Dr Purple / X-Small / 29-inch | 196338189903 | 00TCSL129CXRA--DRPXSDRPYN |
| Dr Purple / Small / 29-inch | 196338189866 | 00TCSL129CXRA--DRPSMDRPYN |
| Dr Purple / Medium / 29-inch | 196338189842 | 00TCSL129CXRA--DRPMDDRPYN |
| Dr Purple / Large / 29-inch | 196338189828 | 00TCSL129CXRA--DRPLGDRPYN |
| Dr Purple / X-Large / 29-inch | 196338189880 | 00TCSL129CXRA--DRPXLDRPYN |
| Green Meadow Mist / X-Small / 29-inch | 196338190008 | 00TCSL129CXRA--GMMXSDRPYN |
| Green Meadow Mist / Small / 29-inch | 196338189965 | 00TCSL129CXRA--GMMSMDRPYN |
| Green Meadow Mist / Medium / 29-inch | 196338189941 | 00TCSL129CXRA--GMMMDDRPYN |
| Green Meadow Mist / Large / 29-inch | 196338189927 | 00TCSL129CXRA--GMMLGDRPYN |
| Green Meadow Mist / X-Large / 29-inch | 196338189989 | 00TCSL129CXRA--GMMXLDRPYN |
