Kona Coco

Kona Coco
  • Color: Gloss Dragonfly Green
$829.00
Color:
Gloss Dragonfly Green
Size:
X-Small
Please select options

Details

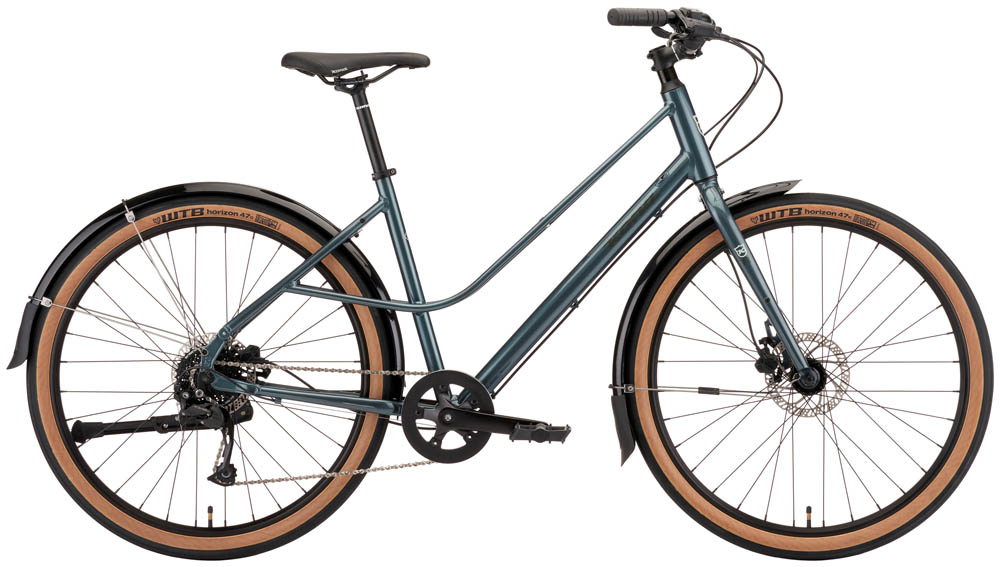

Style points matter. The Coco pays homage to the classic European step-through bicycle. Internal shift cable routing helps keeps the lines clean and sleek, and puncture-resistant tires help keep the ride stress-free. This is the bike that makes neighborhood cruising more fun, so we don't blame you if you "forgot the milk/beer/wine" and need to ride back to the store to pick it up. Don't be surprised if you turn a few heads on this bike!

bike frame with labeled dimensions
Bike Sizes:
X-SmallSmallMediumLargeX-Large
A. Reach 385mm 395mm 423mm 439mm 465mm
B. Stack 550mm 578mm 606mm 644mm 681mm
C. Standover 525mm 543mm 546mm 553mm 582mm
D. Effective Top Tube 522mm 550mm 596mm 636mm 686mm
E. Head Tube Angle 70° 70° 70° 70° 70°
F. Head Tube Length 115mm 145mm 175mm 215mm 255mm
G. Seat Tube Angle 76° 75° 74° 73° 72°
H. Seat Tube Length 370mm 420mm 470mm 520mm 580mm
I. Bottom Bracket Height 272mm 272mm 272mm 272mm 272mm
J. Bottom Bracket Drop 70mm 70mm 70mm 70mm 70mm
K. Fork Rake/Offset 50mm 50mm 50mm 50mm 50mm
M. Wheelbase 1057mm 1078mm 1115mm 1146mm 1185mm
N. Front to Center 617mm 637mm 675mm 705mm 744mm
O. Chainstay Length 450mm 450mm 450mm 450mm 450mm
Fork Length 410mm 410mm 410mm 410mm 410mm
Sizes:
SizeHeight (in)Height (cm)Inseam (in)Inseam (cm)
X-Small 4'10"-5'1" 147-155cm 24"-27" 61-69cm
Small 5'0"-5'3" 152-160cm 26"-29" 66-74cm
Small, Medium 5'2"-5'7" 157-170cm 27"-30" 69-76cm
Medium 5'6"-5'10" 168-178cm 29"-31" 74-79cm
Medium, Large 5'9"-6'0" 175-183cm 30"-33" 76-84cm
Large 5'11"-6'2" 180-188cm 32"-35" 81-89cm
X-Large 6'1"-6'5" 185-196cm 33"-36" 84-91cm

Specs

Frame Kona 6061 Aluminum Butted
Fork Kona Project Two Aluminum Disc
Rims Double Wall Alloy
Hubs Front: Formula 100 x 9mm
Rear: Formula 135 x 10mm
Spokes Stainless Black 14g
Tires WTB Horizon Comp w/ Puncture Protection 650B x 47
Bottom Bracket Feimin 68mm
Crankset Samox
Chainrings 39t/Guard
Shifters Shimano Acera
Rear Derailleur Shimano Alivio SGS
Cassette/Freewheel Shimano HG200 11-32t 9spd
Chain KMC X9
Brakes Tektro HDM275 Hydraulic
Rotors Tektro TR160 160mm
Brake Levers Tektro HDM275 Hydraulic
Handlebars Kona Handplant
Tape/Grips Velo Ergo
Stem Kona Commuter
Headset Feimin FP-H863
Seatpost Kona Thumb w/Offset 27.2mm
Saddle Kona Commuter
Pedals Kona JS2
Accessories & Extras Fenders w/Mudflaps & Kickstand

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Dragonfly Green / X-Small 841073144129 B22CO00 KON29957063S
