The Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. It’s everything we love from the carbon Ripmo, plus a few tweaks.
Over our long tenure from mountain biking's awkward adolescence to its current anything-shreddy era, we've experimented with steel, aluminum and titanium—remember the Bow-Ti, the first superbike? We remember the metal times too, and it feels good to offer a premium ride experience to our broadening family of riders, courtesy of durable, affordable aluminum alloy.
With a steep, 76-degree seat tube angle and a rangy but not stratospheric reach, the Ripmo AF places riders centrally and upright over the bottom bracket. It makes for an efficient position that can go the long haul without placing too much weight on its slack, 64.9-degree headtube angle. A 44mm reduced-offset fork is more surefooted on steep descents and steadies high speeds. Better up, better down.
Since 2005, we've partnered with suspension guru Dave Weagle on the dw-link suspension platform. It provides an unparalleled combination of climbing efficiency and downhill performance, which has been proven repeatedly at the highest levels of racing.
AIR & COIL COMPATIBLE
The Ripmo AF is compatible with both coil and air shocks due to a more progressive leverage rate. It allows for coil's linearity to thrive and we spec air shocks with tunes that provide pop without feeling too harsh. On the trail, it gives the suspension a supple feel throughout the entirety of the stroke, enhancing traction no matter how deep you dig.
2.6" TIRE CLEARANCE
Ibis helped pioneer the wide rim revolution, which inspired the new crop of wider 2.4"-2.6" tires. When paired together, this combo can be run at ultra-low pressures which results in elbow-dragging cornering traction without sacrificing straight line speed.
PICK YOUR SIZE
We use words like small, medium, and large to describe our sizing because it's easy to understand, but our ultra-low standovers give you the ability to size your frame based on reach and preference.
LONG DROPPER POST
What's better than a dropper post? A longer one. Our frames are designed to accommodate the longest dropper posts possible. Riders over 5'8 (or 173cm) can easily run a 185mm dropper post, while folks between 5' and 5'8 (152cm-172cm) can use a post 125mm or longer depending on inseam length.
REMOVABLE ISCG05 MOUNT
Our optional ISCG 05 mount is there if you want it, removable if you don't.
SEVEN YEAR WARRANTY
We stand behind our products. If it's our fault, we'll fix it. Our aluminum frames are backed by the same 7 year warranty and excellent customer service as our carbon products.

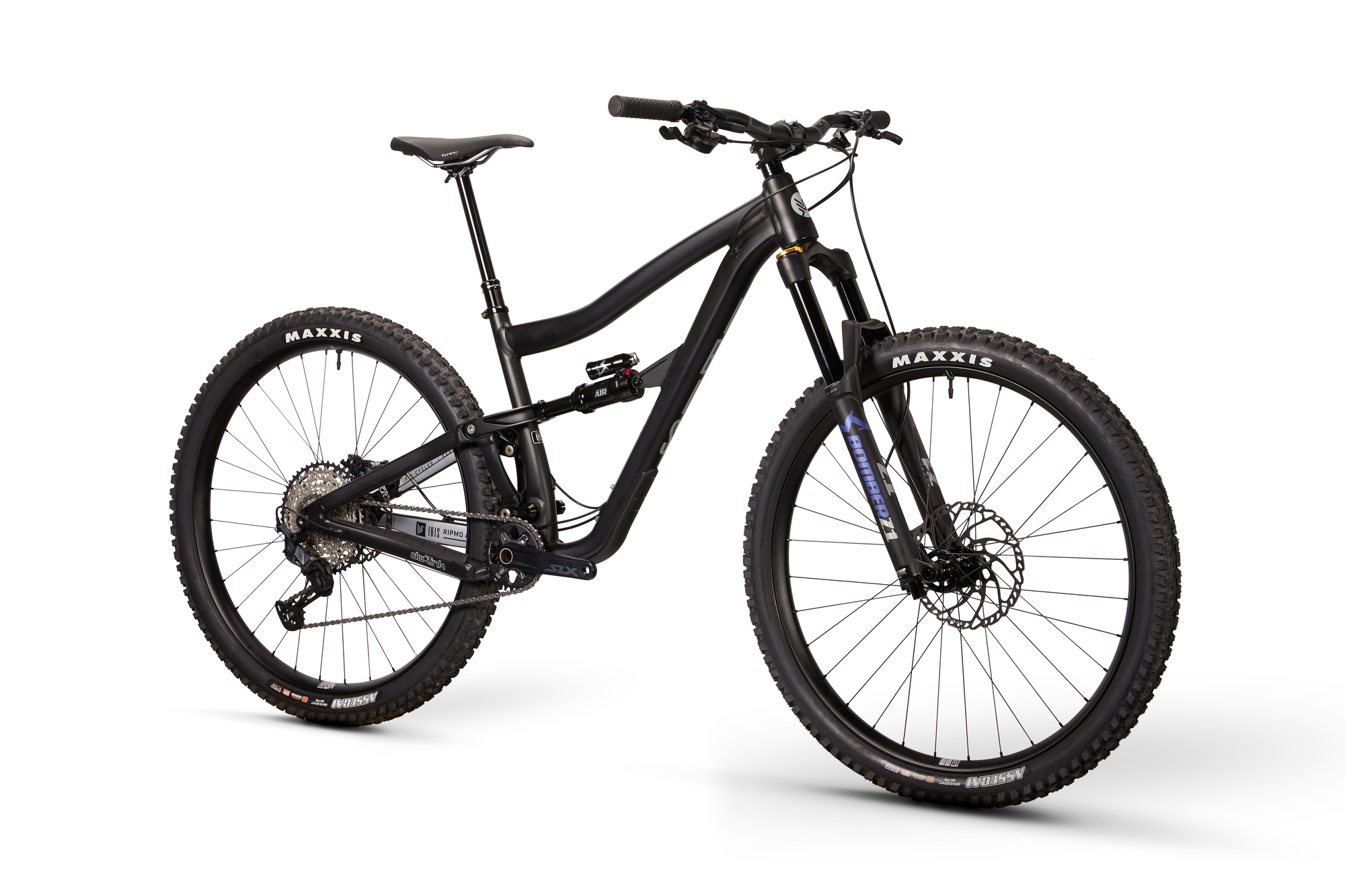

- Image is representational and may differ from build spec

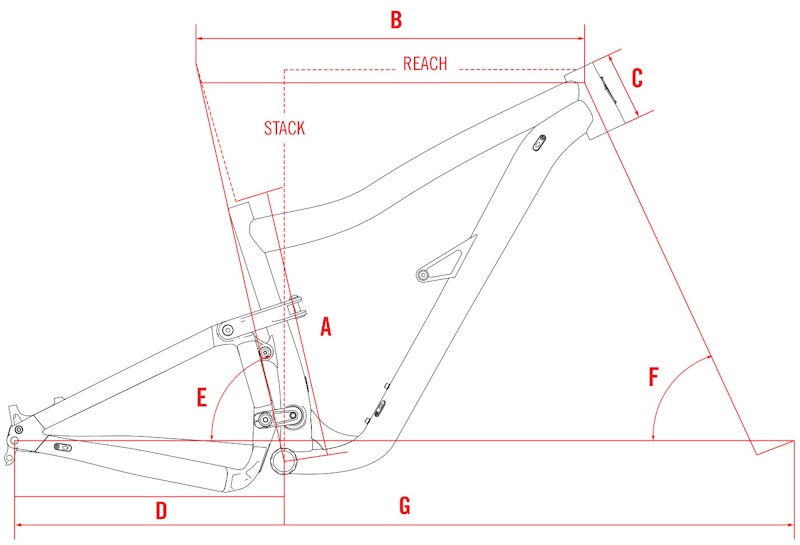

|Seat Tube Length||A||368||380||432||483|
|Top Tube Length||B||573||603||632||655|
|Head Tube Length
(4mm stack of lower cup not included)
|Seat Tube Angle||E||77°||76°||76°||76°|
|Head Tube Angle||F||64.9°||64.9°||64.9°||64.9°|
(with 2.6 Schwalbe Nobby Nicks)
|Saddle height for seat tube angle||650||700||750||810|
|Fork||Marzocchi Bomber Z1 Coil 160mm, 29”, 110x15|
|Rims||Blackbird Send Alloy (Send I front, Send II rear)|
|Stem||Ibis 31.8mm, S/M: 40mm, L: 50mm, XL: 60mm|
|Chain||Shimano SLX M7100|
|Frame||Ibis Ripmo AF|
|Tires||Front/Rear: Maxxis Assegai EXO + WT 29" x 2.5"|
|Brakes||Shimano SLX M7120 4p|
|Rotors||Shimano SM-RT66 203/180mm|
|Saddle||WTB Silverado 142|
|Wheels||Blackbird Send AL|
|Headset||Cane Creek 40 ZS44/ZS56|
|Crankset||Shimano SLX M7100 24mm spindle, S/M: 170mm, L/XL: 175mm|
|Seatpost||Bike Yoke Revive Dropper, S: 125mm, M: 160mm, L: 185mm, XL: 213mm.|
|Shifters||Shimano SLX M7100|
|Handlebars||Ibis 780mm Alloy|
|Rear Shock||Marzocchi Bomber Air|
|Tape/Grips||Lizard Skin Charger Evo|
|Brake Levers||Shimano SLX M7120|
|Bottom Bracket||Shimano SM BB52|
|Rear Derailleur||Shimano SLX M7100 Shadow Plus|
|Cassette/Freewheel||Shimano SLX, 10-51T|
* Subject to change without notice.
|Dank Avocado / Medium / 29-inch||810081729703||RMA2OLSSXAL35||IBI41136506K|
