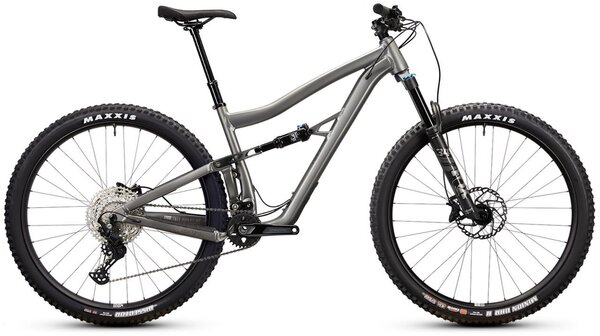

Ibis Ripley AF UDH Deore

Ibis Ripley AF UDH Deore
  • Color: Plum Smash
  • Color: Titanium Toaster
$3,299.00
Color:
Size: Select size
Wheel Size: 29-Inch
Please select options Unavailable

Details

The Ripley AF is our beloved, category-defying, short-travel, singletrack-scorching Ripley - rendered in aluminum, with more aggressive geometry. All the sizzle and pop of the carbon Ripley, now available as a complete bike at a wallet friendly price.

Modern Geometry, Precise Handling
A trail-friendly 65.5-degree head angle and short (44mm) offset 130mm fork combined with 29” wheels makes for a super planted but still playful front end feel. A 76-degree seat tube angle puts your power directly to the pedals, while the short chainstays and pedal-friendly dw-link kinematics deliver that power without squandering a single watt.

Universal Derailleur Hanger
The Ripley AF UDH fea­tures a UDH (Universal Derailleur Hanger) for max­i­mum drivetrain com­pat­i­bil­i­ty and moves to a 55mm chainline.

DW Link Suspension
Our 15-year collaboration with Dave Weagle has yielded yet another bike with unparalleled climbing efficiency and control. Incredible snap and responsiveness are its trademarks, and a whole mess of plush, chunder-eating, downhill-crushing goodness gets thrown in for good measure. Wrap that together and you get the best suspension you’ll find anywhere. It’s that good.

Long Dropper Post
The Ripley AF frame is designed with clear­ance for long drop­pers in mind.

Pick Your Size
We use words like small, medi­um, and large to describe our siz­ing because it’s easy to under­stand, but our ultra low stan­dovers give you the abil­i­ty to size your frame based on reach and preference.

2.6" Tire Clearance
We pio­neered the wide rim rev­o­lu­tion a few years ago and inspired a new crop of wider 2.4”-2.6” tires. When paired togeth­er, this com­bo can be run at ultra-low pres­sures that pro­duce elbow-drag­ging cor­ner­ing trac­tion with­out sac­ri­fic­ing speed.

Removable ISCG-05 Mount.
There if you want it, removable if you don’t.

Lifetime Warranty
If it’s our fault, we’ll fix it. Simple as that.

Sizes:
Nominal SizeSMMDLGXL
Seat Tube Length 368 381 418 482
Top Tube Length 574 603 630 658
Head Tube Length
(4mm stack of lower cup not included)
90 105 115 125
Chainstay Length 432 432 432 432
Seat Tube Angle 76° 76° 76° 76°
Head Tube Angle 65.5° 65.5° 65.5° 65.5°
Wheelbase 1157 1188 1217 1246
BB Height
(with 2.5 Maxxis Minons)
335 335 335 335
Stack 599 613 622 631
Reach 425 450 475 500
Standover 676 703 722 759
Trail 120 120 120 120
Saddle height for seat tube angle 620 700 750 807
Sizes:
s5'0"–5' 4"
m 5'3"–5' 8"
l 5'7"-6'1"
xl 6'–6'5"

Specs

Frame Aluminum
Fork Fox Performance Series, Float 34, 130mm, 44mm offset, 29”, 110x15mm
Rear Shock Fox Performance Series Float DPS with EVOL, 190mm x 45mm
Wheels Blackbird Send Alloy (Send I front, Send II rear) / 29" / Ibis Hubs
Tires Maxxis DHR2 29" x 2.4" Exo TR / Maxxis Dissector 29" x 2.4" Exo TR (rear)
Brakes Shimano Deore M6100, 2 Piston
Crankset Shimano Deore M6100, 24mm Spindle, 30T
Bottom Bracket Shimano SM BB52
Shifters Shimano Deore, M6100
Cassette/Freewheel Shimano Deore, M6100, 10-51T
Rear Derailleur Shimano Deore, M6100, Shadow Plus
Rotors Shimano SM-RT66, F/R: 180mm
Headset Cane Creek 40 ZS44/ZS56
Handlebars Ibis Aluminum, 780mm
Chain KMC X12 Silver Chain
Tape/Grips Lizard Skin Charger
Stem Ibis 31.8mm S–M: 40mm, L–XL: 50mm
Seatpost KS Rage-i Dropper 31.6mm S: 125mm, M: 150mm, L/XL: 170mm
Saddle WTB Silverado, 142mm

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Plum Smash / Small / 29-Inch 840345314963 RLA1PLSDEAL3525 IBI28667902H
Plum Smash / Medium / 29-Inch 840345315007 RLA2PLSDEAL3525 IBI23773827M
Titanium Toaster / Medium / 29-Inch 840345315021 RLA2TISDEAL3525 IBI27894080M
Titanium Toaster / Large / 29-Inch 840345315069 RLA3TISDEAL3525 IBI34647155R
